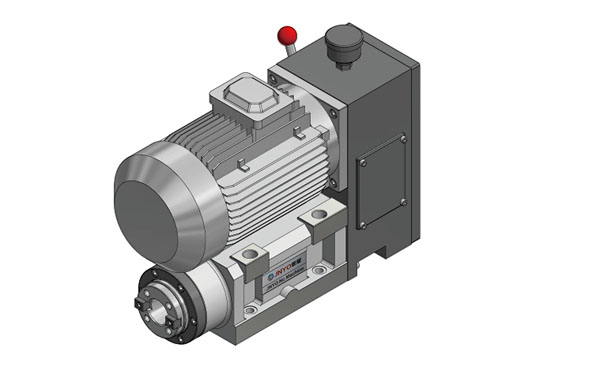

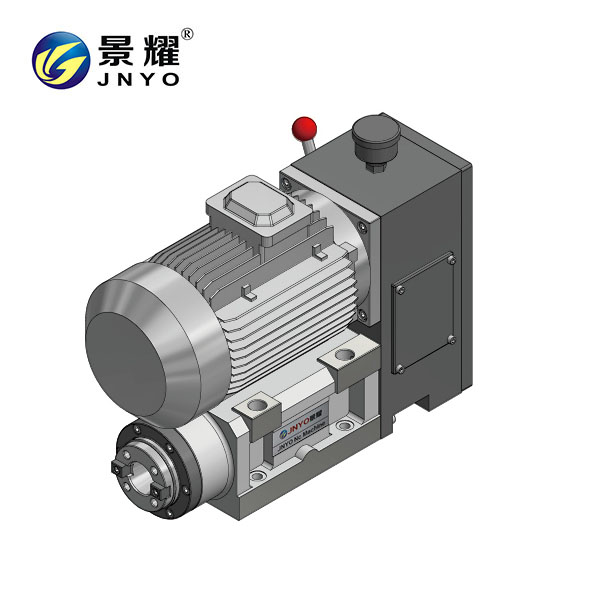

XT40-2 镗铣主轴头配变速箱电机

XT40-2 镗铣主轴头配变速箱电机

XT40-2-NT40

XT40-2-MT4

XT40-2-ER40

※变速箱由高速（1：1）、空挡、低速（4：1）组成；可换档的高低速切换，让粗加工和精加工同时成为可能

Transmission by high-speed (1:1), neutral, low-speed (1:4); Can shift of low speed switching high, make it possible for roughing and finishing at the same time

※电机功率及转速可根据需求配置

The motor power and speed can configure according to demand

※可接受特殊规格动力头定制

We accept spindle unit order

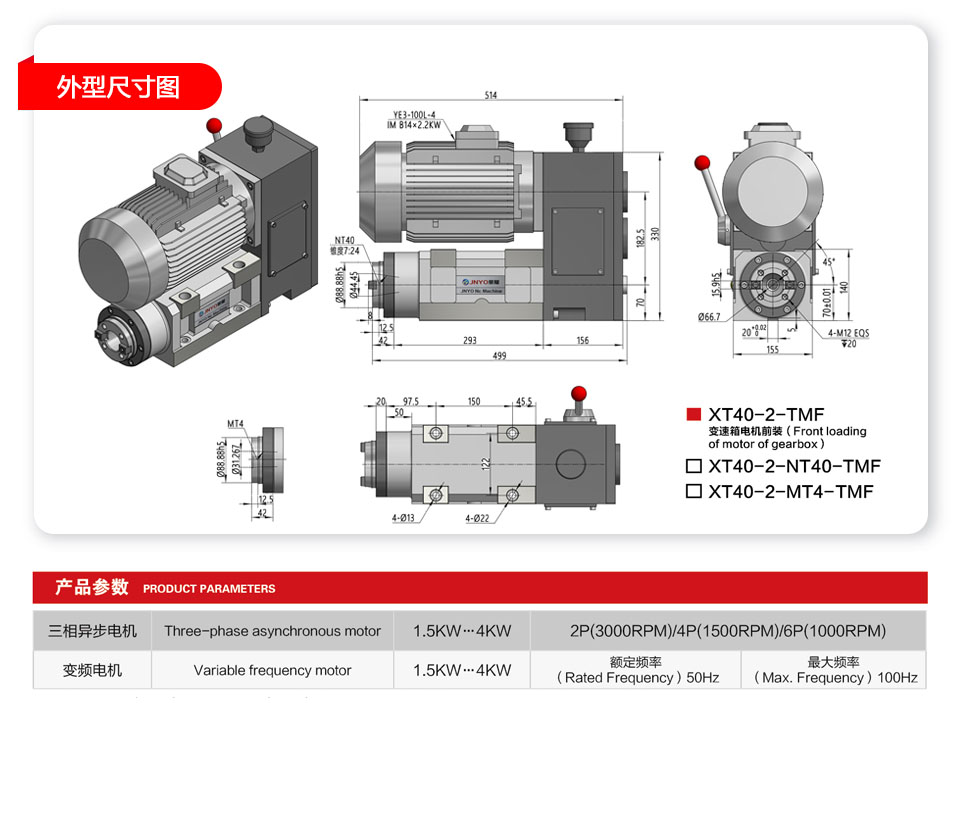

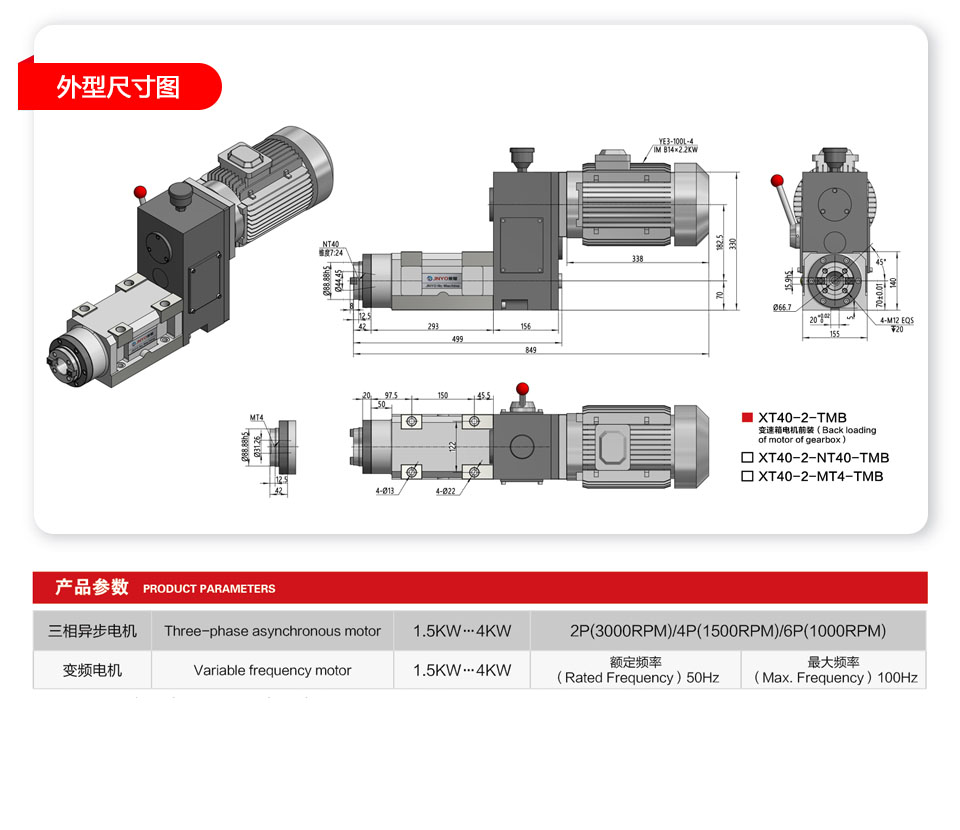

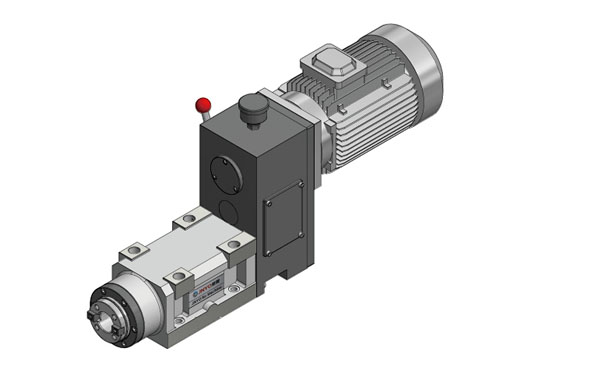

※电机箱体配置方向还能前装左侧90°/前装右侧90°、后装左侧90°/后装右侧90°、向下前置/向下后置

Motor enclosure configuration before direction can also be installed on the left side of the 90 ° 90 ° / on the right side of front loading, after loading on the left side of the 90 ° / 90 ° on the right side, front/rear downward
